ISG型管道離心泵,是本單位科技人員聯合國內水泵專家選用優秀水力模型,采用IS型離心泵之性能參數,在一般立式泵的基礎上進行巧妙組合設計而成。同時根據使用溫度、介質等不同在ISG型基礎上派出適用熱水、高溫、腐蝕性化工泵、油泵。該系列產品具有高效節能、噪音低、性能可靠等優點。
型號 | 流量(m3/h) | 流量 (L/S) |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汽蝕余量 (m) |
15-80 | 1.1 1.5 2.0 |
0.30 0.42 0.55 |
8.5 8 7 |
26 34 34 |
2800 | 0.18 | 2.5 |
20-110 | 1.8 2.5 3.3 |
0.5 0.69 0.91 |
16 15 13.5 |
19 34 35 |
2800 | 0.37 | 2.5 |
20-160 | 1.8 2.5 3.3 |
0.5 0.69 0.91 |
33 32 30 |
19 25 23 |
2800 | 0.75 | 2.5 |
25-110 | 2.8 4 5.2 |
0.78 1.11 1.44 |
16 15 13.5 |
34 42 41 |
2900 | 0.55 | 2.5 |
25-125 | 2.8 4 5.2 |
0.78 1.11 1.44 |
20.6 20 18 |
28 36 35 |
2900 | 0.75 | 2.5 |
25-125A | 2.5 3.5 4.5 |
0.69 0.97 1.25 |
17 16 14 |
35 | 2900 | 0.75 | 2.5 |
25-160 | 2.8 4 5.2 |
0.78 1.11 1.44 |
33 32 30 |
24 32 33 |
2900 | 1.5 | 2.5 |
25-160A | 2.5 3.5 4.5 |
0.69 0.97 1.25 |
29 28 26 |
31 |
2900 | 1.1 | 2.5 |
32-125 | 4.5 4 6.5 |
1.25 1.39 1.58 |
20.5 20 18 |
29 38 38 |
2900 | 0.75 | 2.5 |
32-125A | 3.3 4.5 5.7 |
1.22 1.75 2.31 |
17 16 14 |
37 |
2900 | 0.75 | 2.5 |
40-100 | 4.4 6.3 8.3 |
1.11 1.53 1.94 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 | 2.5 |
40-100A | 4 5.5 7 |
1.22 1.75 2.31 |
10.6 10 9 |
47 52.6 54 |
2900 | 0.37 | 2.5 |
40-125 | 4.4 6.3 8.3 |
1.11 1.53 1.94 |
20.5 20 18.5 |
36 46 43 |
2900 | 1.1 | 2.5 |
40-125A | 4 5.5 7 |
1.22 1.75 1.94 |
16.3 16 15.5 |
40 44 42.5 |
2900 | 0.75 | 2.5 |
40-160 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
33.2 32 30.2 |
34 40 42 |
2900 | 2.2 | 2.5 |
40-160A | 4 5.5 7 |
1.11 1.53 1.94 |
29 28 26.6 |
33 38 39 |
2900 | 1.5 | 2.5 |
40-160B | 3.5 5 6.5 |
0.97 1.39 1.80 |
25 24 22.5 |
31.5 37 39 |
2900 | 1.1 | 2.5 |
40-200 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
50.5 50 48 |
26 33 35 |
2900 | 4.0 | 2.5 |
40-200A | 4 5.5 7 |
1.11 1.53 1.94 |
44.6 44 42.7 |
26 31 32 |
2900 | 3.0 | 2.5 |
40-200B | 3.5 5 6.5 |
0.97 1.39 1.80 |
39 38 36 |
29 | 2900 | 2.2 | 2.5 |
40-250 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 27.5 28 |
2900 | 7.5 | 2.5 |
40-250A | 4 5.5 7 |
1.11 1.53 1.94 |
72.5 70 65 |
24 26 24.5 |
2900 | 5.5 | 2.5 |
40-250B | 3.5 5 6.5 |
0.097 1.39 1.80 |
63 60 55 |
25 | 2900 | 4.0 | 2.5 |
40-100(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.5 |
40-100(I)A | 8 11 14 |
2.22 3.05 3.89 |
10.5 10 9 |
60 | 2900 | 0.75 | 2.5 |
40-125(I) | 8.8 12.5 16.3 |
2.44 3.05 3.89 |
21.5 20 17.8 |
49 58 58 |
2900 | 1.5 | 2.5 |
40-125(I)A | 8 11 14 |
2.22 3.05 3.89 |
17.0 16 14.3 |
56 | 2900 | 1.1 | 2.5 |
40-160(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33.3 32 29.8 |
45 52 53 |
2900 | 3.0 | 2.5 |
40-160(I)A | 8 11 14 |
2.22 3.05 3.89 |
29 28 26.2 |
43 48 47 |
2900 | 2.2 | 2.5 |
40-160(I)B | 7 10 13 |
1.94 2.78 3.61 |
26 24 20 |
50 |
2900 |
1.5 | 2.5 |
40-200(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
51 50 48.5 |
38 46 49 |
2900 | 5.5 | 2.5 |
40-200(I)A | 8 11 14 |
2.22 3.05 3.89 |
44.7 44 43 |
43 | 2900 | 4.0 | 2.5 |
40-200(I)B | 7 10 13 |
1.94 2.78 3.61 |
40 38 35 |
44 | 2900 | 3.0 | 2.5 |
40-250(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.8 80 77.5 |
29 36 40 |
2900 | 11 | 2.5 |
40-250(I)A | 8 11 14 |
2.22 3.05 3.89 |
71.5 70 68 |
34 | 2900 | 7.5 | 2.5 |
40-250(I)B | 7 10 13 |
1.94 2.78 3.61 |
62 60 57 |
34 | 2900 | 7.5 | 2.5 |
50-100 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.5 |
50-100A | 8 11 14 |
2.22 3.05 3.89 |
10.7 10 9 |
52 57 57 |
2900 | 0.75 | 2.5 |
50-125 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 58 |
2900 | 1.5 | 2.5 |
50-125A | 8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 58 |
2900 | 1.5 | 2.5 |
50-125B | 8 11 14 |
2.22 3.05 3.89 |
17 16 14.3 |
47.5 53 54 |
2900 | 1.1 | 2.5 |
50-160 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33.3 32 29.8 |
45 52 53 |
2900 | 3.0 | 2.5 |
50-160A | 8 11 14 |
2.22 3.05 3.89 |
29 28 26.2 |
43 48 47 |
2900 | 2.2 | 2.5 |
50-160B | 7 10 13 |
1.94 2.78 3.61 |
26 24 20 |
50 | 2900 | 1.5 | 2.5 |
50-200 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
51 50 48.5 |
38 46 49 |
2900 | 5.5 | 2.5 |
50-200A | 8 11 14 |
2.22 3.05 3.89 |
44.7 44 43 |
37 43 43 |
2900 | 4.0 | 2.5 |
50-200B | 7 10 13 |
1.94 2.78 3.61 |
40 38 35 |
44 | 2900 | 3.0 | 2.5 |
50-250 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.4 80 77.5 |
29 36 40 |
2900 | 11 | 2.5 |
50-250A | 8 11 14 |
2.22 3.05 3.89 |
71.5 70 68 |
29 34 37 |
2900 | 7.5 | 2.5 |
50-250B | 7 10 13 |
1.94 2.78 3.61 |
62 60 57 |
34 | 2900 | 7.5 | 2.5 |
50-100(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 70 |
2900 | 1.5 | 3.0 |
50-100(I)A | 16 22 28 |
4.44 6.11 7.78 |
10.8 10 8.7 |
65 68 65 |
2900 | 1.1 | 3.0 |
50-125(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
22.0 20 17.0 |
63 67 65 |
2900 | 3.0 | 3.0 |
50-125(I)A | 16 22 28 |
4.44 6.11 7.78 |
17.5 16 13.5 |
62 63 62 |
2900 | 2.2 | 3.0 |
50-160(I) | 16 22 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
55 63 60 |
2900 | 4.0 | 3.0 |
50-160(I)A | 14 20 28 |
4.44 6.11 7.78 |
30 28 24.5 |
57 59 58 |
2900 | 4.0 | 3.0 |
50-160(I)B | 14 20 26 |
3.89 5.56 7.22 |
26 24 21 |
61 | 2900 | 3.0 | 3.0 |
50-200(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 57 60 |
2900 | 7.5 | 3.0 |
50-200(I)A | 16 22 28 |
4.44 6.11 7.78 |
46.2 44.2 41 |
52 55 57 |
2900 | 7.5 | 3.0 |
50-200(I)B | 14 20 26 |
3.89 5.56 7.72 |
40.5 38 34 |
55 | 2900 | 5.5 | 3.0 |
50-250(I) | 17.5 25 32.5 |
4.86 6.94 9.30 |
81.8 80 76.5 |
39 50 55 |
2900 | 15 | 3.0 |
50-250(I)A | 16 22 28 |
4.44 6.11 7.78 |
71.4 70 68.0 |
42 47 51 |
2900 | 11 | 3.0 |
50-250(I)B | 14 20 26 |
3.89 5.56 7.72 |
62 60 56 |
50 | 2900 | 11 | 3.0 |
50-315(I) | 17.5 25 32.5 |
4.86 6.94 9.30 |
127 125 122 |
31 40 44 |
2900 | 30 | 3.0 |
50-315(I)A | 16 22 28 |
4.44 6.11 7.78 |
115 113 110 |
38 | 2900 | 30 | 3.0 |
50-315(I)B | 14 20 26 |
3.89 5.56 7.72 |
103 101 98 |
37 | 2900 | 22 | 3.0 |
65-100 | 17.5 25 32.5 |
4.86 6.94 9.30 |
13.7 12.5 10.5 |
67 69 70 |
2900 | 1.5 | 3.0 |
65-100A | 16 22 28 |
4.44 6.11 7.78 |
10.8 10 8.7 |
65 68 65 |
2900 | 1.1 | 3.0 |
65-125 | 17.5 25 32.5 |
4.86 6.94 9.30 |
22 20 17 |
63 67 65 |
2900 | 3.0 | 3.0 |
65-125A | 16 22 28 |
4.44 6.11 7.78 |
17.5 16 13.5 |
62 63 62 |
2900 | 2.2 | 3.0 |
65-160 | 17.5 25 32.5 |
4.86 6.94 9.30 |
34.4 32 27.5 |
55 63 60 |
2900 | 4.0 | 3.0 |
65-160A | 16 22 28 |
4.44 6.11 7.78 |
30 28 24.5 |
57 59 58 |
2900 | 3.0 | 3.0 |
65-160B | 14 20 26 |
3.89 5.56 7.72 |
26 24 21 |
61 | 2900 | 2.2 | 3.0 |
65-200 | 17.5 25 32.5 |
4.86 6.94 9.30 |
52.7 50 45.5 |
49 57 60 |
2900 | 7.5 | 3.0 |
65-200A | 16 22 28 |
4.44 6.11 7.78 |
46.2 44.2 41 |
52 55 57 |
2900 | 5.5 | 3.0 |
65-200B | 14 20 26 |
3.89 5.56 7.72 |
40.5 38 34 |
55 | 2900 | 4.0 | 3.0 |
65-250 | 17.5 25 32.5 |
4.86 6.94 9.30 |
81.8 80 76.5 |
39 50 55 |
2900 | 15 | 3.0 |
65-250A | 16 22 28 |
4.44 6.11 7.78 |
71.4 70 68 |
42 47 51 |
2900 | 11 | 3.0 |
65-250B | 14 20 26 |
3.89 5.56 7.72 |
62 60 56 |
50 | 2900 | 7.5 | 3.0 |
65-315 | 17.5 25 32.5 |
4.86 6.94 9.30 |
127 125 122 |
31 40 44 |
2900 | 30 | 3.0 |
65-315A | 16 22 28 |
4.44 6.11 7.78 |
115 113 110 |
38 | 2900 | 30 | 3.0 |
65-315B | 14 20 26 |
3.89 5.56 7.72 |
103 101 98 |
37 | 2900 | 22 | 3.0 |
65-100(I) | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3.0 | 3.5 |
65-100(I)A | 32 44 56 |
8.89 12.2 15.6 |
11 10 8.5 |
67 72 71 |
2900 | 2.2 | 3.5 |
65-125(I) | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.5 |
65-125(I)A | 32 44 56 |
8.89 12.2 15.6 |
18 16 13 |
67 72 68 |
2900 | 4.0 | 3.5 |
65-160(I) | 35 50 65 |
9.72 13.9 18.1 |
35 32 27.5 |
63 71 70 |
2900 | 7.5 | 3.5 |
65-160(I)A | 32 44 56 |
8.89 12.2 15.6 |
30 28 25 |
65 70 66 |
2900 | 7.5 | 3.5 |
65-160(I)B | 28 40 52 |
7.78 11.1 14.4 |
27 24 20 |
69 | 2900 | 5.5 | 3.5 |
65-200(I) | 35 50 65 |
9.72 13.9 18.1 |
53.5 50 44 |
58 67 68 |
2900 | 15 | 3.5 |
65-200(I)A | 32 44 56 |
8.89 12.2 15.6 |
47 44 40 |
57 66 68 |
2900 | 11 | 3.5 |
65-200(I)B | 28 40 52 |
7.78 11.1 14.4 |
40.4 38 33 |
65 | 2900 | 7.5 | 3.5 |
65-250(I) | 35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 60 62 |
2900 | 22 | 3.5 |
65-250(I)A | 32 44 56 |
8.89 12.2 15.6 |
73 70 64 |
53 57 63 |
2900 | 18.5 | 3.5 |
65-250(I)B | 28 40 52 |
7.78 11.1 14.4 |
63 60 53 |
61 | 2900 | 15 | 3.5 |
65-315(I) | 35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
53 54 57 |
2900 | 37 | 3.0 |
65-315(I)A | 32 44 56 |
8.89 12.2 15.6 |
116 113 110 |
42 53 56 |
2900 | 37 | 3.0 |
65-315(I)B | 28 40 52 |
7.78 11.1 14.4 |
103 101 97 |
52 | 2900 | 30 | 3.0 |
80-100 | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 |
2900 | 3.0 | 3.5 |
80-100A | 32 44 56 |
8.89 12.2 15.6 |
11 10 8.5 |
67 72 71 |
2900 | 2.2 | 3.5 |
80-125 | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.5 |
80-125A | 32 44 56 |
8.89 12.2 15.6 |
18.0 16 13 |
67 72 68 |
2900 | 4.0 | 3.5 |
80-160 | 35 50 65 |
9.72 13.9 18.1 |
35 32 27.5 |
63 71 70 |
2900 | 7.5 | 3.5 |
80-160A | 32 44 56 |
8.89 12.2 15.6 |
30 28 25 |
65 70 66 |
2900 | 7.5 | 3.5 |
80-160B | 28 40 52 |
7.78 11.1 14.4 |
27 24 20 |
69 | 2900 | 5.5 | 3.5 |
80-200 | 35 50 65 |
9.72 13.9 18.1 |
53 50 44 |
58 67 68 |
2900 | 15 | 3.5 |
80-200A | 32 44 56 |
8.89 12.2 15.6 |
47 44 40 |
57 66 68 |
2900 | 11 | 3.5 |
80-200B | 28 40 52 |
7.78 11.1 14.4 |
40.5 38 23 |
65 | 2900 | 7.5 | 3.5 |
80-250 | 35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 60 62 |
2900 | 22 | 3.0 |
80-250A | 32 44 56 |
8.89 12.2 15.6 |
73 70 64 |
53 |
2900 | 18.5 | 3.0 |
80-250B | 28 40 52 |
7.78 11.1 14.4 |
63 60 53 |
61 | 2900 | 15 | 3.0 |
80-315 | 35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 | 37 | 3.0 |
80-315A | 32 44 56 |
8.89 12.2 15.6 |
116 113 110 |
42 53 56 |
2900 | 37 | 3.0 |
80-315B | 28 40 52 |
7.78 11.1 14.4 |
103 101 97 |
52 | 2900 | 30 | 3.0 |
80-100(I) | 70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 | 4.5 |
80-100(I)A | 64 88 112 |
17.8 24.4 31.1 |
11 10 8.5 |
67 75 76 |
2900 | 4.0 | 4.5 |
125-400(I)A | 128 176 224 |
35.6 48.9 62.2 |
46 44 40 |
66 71 70 |
1450 | 37 | 3.5 |
125-400(I)B | 105 150 195 |
29.1 41.7 54.2 |
40.5 38 30 |
72 | 1450 | 30 | 3.5 |
150-200 | 112 160 208 |
31.1 44.4 57.8 |
13.5 12.5 10 |
60 72 66 |
1450 | 11 | 3.0 |
150-200A | 98 140 182 |
27.2 39 50.6 |
11 10 8.5 |
68 70 71 |
1450 | 7.5 | 3.5 |
150-250 | 112 160 208 |
31.1 44.4 57.8 |
23.5 20 14 |
66 71 66 |
1450 | 15 | 3.5 |
150-250A | 98 140 182 |
27.2 39 50.6 |
10 17 11 |
65 70 66 |
1450 | 11 | 3.0 |
150-250B | 84 120 156 |
23.3 33.3 43.3 |
15.5 14 10 |
62 70 68 |
1450 | 7.5 | 3.0 |
150-315 | 112 160 208 |
31.1 44.4 57.8 |
33 32 28 |
62 70 80 |
1450 | 22 | 3.5 |
150-315A | 98 140 182 |
27.2 39 50.6 |
20 28 26.6 |
60 71 80 |
1450 | 18.5 | 3.5 |
150-315B | 84 120 156 |
23.3 33.3 43.3 |
25 24 22.5 |
66 71 70 |
1450 | 15 | 3.5 |
150-400 | 112 160 208 |
31.1 44.4 57.8 |
52 50 42 |
60 72 80 |
1450 | 37 | 3.5 |
150-400A | 98 140 182 |
27.2 39 50.6 |
46 44 39 |
60 70 80 |
1450 | 30 | 3.5 |
150-400B | 84 120 156 |
23.3 33.3 43.3 |
41 38 30 |
66 70 73 |
1450 | 22 | 3.5 |
150-200(I) | 140 200 260 |
38.9 55.6 72.2 |
13.5 12.5 11 |
68 78 78 |
1450 | 15 | 3.0 |
150-200(I)A | 128 176 224 |
35.6 48.9 62.2 |
11 10 8.5 |
68 76 80 |
1450 | 11 | 3.0 |
150-250(I) | 140 200 160 |
38.9 55.6 72.2 |
23.5 20 14 |
70 79 72 |
1450 | 18.5 | 3.5 |
150-250(I)A | 128 176 224 |
35.6 48.9 62.2 |
19 17 11 |
68 77 71 |
1450 | 15 | 3.5 |
150-315(I) | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 26 |
73 78 70 |
1450 | 30 | 3.5 |
150-315(I)A | 128 176 224 |
35.6 48.9 62.2 |
31.5 28 23 |
60 76 80 |
1450 | 22 | 3.5 |
150-315(I)B | 105 150 195 |
29.1 41.7 54.2 |
27.5 25 18 |
65 72 68 |
1450 | 18.5 | 3.5 |
150-400(I) | 140 200 260 |
38.9 55.6 72.2 |
53 50 43.5 |
68 75 71 |
1450 | 45 | 3.5 |
150-400(I)A | 128 176 224 |
35.6 48.9 62.2 |
46 44 40 |
67 72 71 |
1450 | 37 | 3.5 |
150-400(I)B | 112 160 208 |
31.1 44.4 57.8 |
40.5 38 30 |
73 | 1450 | 30 | 3.5 |
150-250 | 120 200 240 |
33.3 55.6 66.7 |
83 80 72 |
66 78 75 |
2900 | 75 | 3.5 |
150-250A | 112 187 224 |
31.3 51.9 62.2 |
73 70 63 |
64 75 73 |
2900 | 55 | 4.2 |
150-250B | 144 173 208 |
28.9 48.1 37.8 |
63 60 54 |
63 74 72 |
2900 | 45 | 4.5 |
150-315 | 120 200 240 |
33.3 55.6 66.7 |
130 125 120 |
60 75 77 |
2900 | 110 | 4.5 |
150-315A | 112 187 224 |
31.3 51.9 62.2 |
113 110 105 |
57 72 74 |
2900 | 90 | 4.5 |
150-315B | 104 173 208 |
28.9 48.1 57.8 |
98 95 91 |
55 70 72 |
2900 | 75 | 4.5 |
200-200 | 140 200 260 |
38.9 55.6 72.2 |
13.5 12.5 11 |
68 78 78 |
1450 | 15 | 3.0 |
200-200A | 128 176 224 |
35.6 48.9 62.2 |
11 10 8.5 |
76 | 1450 | 11 | 3.0 |
200-250 | 140 200 260 |
38.9 55.6 72.2 |
22 30 15.5 |
70 79 72 |
1450 | 18.5 | 3.5 |
100-100(I) | 96 160 192 |
26.7 44.4 53.3 |
14 12.5 10 |
64 73 70 |
2900 | 11 | 4.5 |
100-125(I) | 96 160 192 |
26.7 44.4 53.3 |
24 20 14 |
62 74 69 |
2900 | 15 | 4.5 |
100-125(I)A | 84 140 168 |
23.3 39 46.7 |
20 17 12 |
64 72 78 |
2900 | 11 | 4.5 |
100-160(I) | 96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
69 79 75 |
2900 | 22 | 5.6 |
100-160(I)A | 84 140 168 |
23.3 39 46.7 |
32 28 23.5 |
66 76 72 |
2900 | 18.5 | 5.0 |
100-200(I) | 96 160 192 |
26.7 44.4 53.3 |
53 50 45 |
69 79 78 |
2900 | 37 | 5.2 |
100-200(I)A | 84 140 168 |
23.3 39 46.7 |
48 45 40 |
64 74 73 |
2900 | 30 | 4.5 |
100-200(I)B | 60 120 100 |
16.7 27.8 33.3 |
43 40 36 |
72 | 2900 | 22 | 4.5 |
100-250(I) | 96 160 192 |
26.7 44.4 53.3 |
83 80 72 |
65 77 74 |
2900 | 55 | 4.8 |
100-250(I)A | 84 140 168 |
23.3 39 46.7 |
75 72 65 |
60 72 69 |
2900 | 45 | 4.5 |
100-250(I)B | 60 120 100 |
16.7 27.8 33.3 |
68 65 58 |
70 | 2900 | 37 | 4.5 |
125-160 | 96 160 192 |
26.7 44.4 53.3 |
35 32 27 |
69 79 75 |
2900 | 22 | 5.6 |
125-160A | 84 140 168 |
23.3 39 46.7 |
32 28 23.5 |
66 76 72 |
2900 | 18.5 | 5.0 |
125-200 | 96 160 192 |
26.7 44.4 53.3 |
53 50 45 |
69 79 78 |
2900 | 37 | 5.2 |
125-200A | 84 140 168 |
23.3 39 46.7 |
48 45 40 |
64 74 73 |
2900 | 30 | 4.5 |
125-200B | 60 100 120 |
16.7 27.8 33.3 |
42 40 36 |
72 | 2900 | 22 | 4.5 |
125-250 | 96 160 192 |
26.7 44.4 53.3 |
83 80 72 |
65 77 74 |
2900 | 55 | 4.8 |
125-250A | 84 140 168 |
23.3 39 46.7 |
75 72 65 |
60 72 69 |
2900 | 45 | 4.5 |
125-250B | 60 100 120 |
16.7 27.8 33.3 |
68 65 58 |
70 | 2900 | 37 | 4.5 |
125-315 | 96 160 192 |
26.7 44.4 53.3 |
128 125 117 |
70 72 68 |
2900 | 90 | 4.8 |
125-315A | 84 140 168 |
23.3 39 46.7 |
117 113 104 |
65 70 71 |
2900 | 75 | 4.5 |
125-315B | 60 100 120 |
16.7 27.8 33.3 |
107 101 92 |
65 68 66 |
2900 | 55 | 4.5 |
125-200(I) | 140 200 260 |
38.9 55.6 72.2 |
13.5 12.5 11 |
66 76 76 |
2900 | 15 | 3.0 |
125-200(I)A | 128 176 224 |
35.6 48.9 62.2 |
11 10 8.5 |
72 74 70 |
2900 | 11 | 3.0 |
125-250(I) | 140 200 260 |
38.9 55.6 72.2 |
23.5 20 14 |
70 76 73 |
2900 | 18.5 | 3.5 |
125-250(I)A | 128 176 224 |
35.6 48.9 62.2 |
19 17 11 |
70 74 71 |
2900 | 15 | 3.5 |
125-315(I) | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 26 |
70 76 72 |
2900 | 30 | 3.5 |
125-315(I)A | 128 176 224 |
35.6 48.9 62.2 |
31 28 23 |
72 74 76 |
2900 | 22 | 3.5 |
125-315(I)B | 105 150 195 |
29.1 41.7 54.2 |
27.5 25 18 |
65 70 65 |
2900 | 18.5 | 3.5 |
125-400(I) | 140 200 260 |
38.9 55.6 72.2 |
53 50 43.5 |
68 73 70 |
2900 | 45 | 3.5 |
125-400(I)A | 128 176 224 |
35.6 48.9 62.2 |
46 44 40 |
66 71 70 |
1450 | 37 | 3.5 |
125-400(I)B | 105 150 195 |
29.1 41.7 54.2 |
40.5 38 30 |
72 | 1450 | 30 | 3.5 |
150-200 | 112 160 208 |
31.1 44.4 57.8 |
13.5 12.5 10 |
60 72 66 |
1450 | 11 | 3.0 |
150-200A | 98 140 182 |
27.2 39 50.6 |
11 10 8.5 |
68 70 71 |
1450 | 7.5 | 3.5 |
150-250 | 112 160 208 |
31.1 44.4 57.8 |
23.5 20 14 |
66 71 66 |
1450 | 15 | 3.5 |
150-250A | 98 140 182 |
27.2 39 50.6 |
10 17 11 |
65 70 66 |
1450 | 11 | 3.0 |
150-250B | 84 120 156 |
23.3 33.3 43.3 |
15.5 14 10 |
62 70 68 |
1450 | 7.5 | 3.0 |
150-315 | 112 160 208 |
31.1 44.4 57.8 |
33 32 28 |
62 70 80 |
1450 | 22 | 3.5 |
150-315A | 98 140 182 |
27.2 39 50.6 |
20 28 26.6 |
60 71 80 |
1450 | 18.5 | 3.5 |
150-315B | 84 120 156 |
23.3 33.3 43.3 |
25 24 22.5 |
66 71 70 |
1450 | 15 | 3.5 |
150-400 | 112 160 208 |
31.1 44.4 57.8 |
52 50 42 |
60 72 80 |
1450 | 37 | 3.5 |
150-400A | 98 140 182 |
27.2 39 50.6 |
46 44 39 |
60 70 80 |
1450 | 30 | 3.5 |
150-400B | 84 120 156 |
23.3 33.3 43.3 |
41 38 30 |
66 70 73 |
1450 | 22 | 3.5 |
150-200(I) | 140 200 260 |
38.9 55.6 72.2 |
13.5 12.5 11 |
68 78 78 |
1450 | 15 | 3.0 |
150-200(I)A | 128 176 224 |
35.6 48.9 62.2 |
11 10 8.5 |
68 76 80 |
1450 | 11 | 3.0 |
150-250(I) | 140 200 160 |
38.9 55.6 72.2 |
23.5 20 14 |
70 79 72 |
1450 | 18.5 | 3.5 |
150-250(I)A | 128 176 224 |
35.6 48.9 62.2 |
19 17 11 |
68 77 71 |
1450 | 15 | 3.5 |
150-315(I) | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 26 |
73 78 70 |
1450 | 30 | 3.5 |
150-315(I)A | 128 176 224 |
35.6 48.9 62.2 |
31.5 28 23 |
60 76 80 |
1450 | 22 | 3.5 |
150-315(I)B | 105 150 195 |
29.1 41.7 54.2 |
27.5 25 18 |
65 72 68 |
1450 | 18.5 | 3.5 |
150-400(I) | 140 200 260 |
38.9 55.6 72.2 |
53 50 43.5 |
68 75 71 |
1450 | 45 | 3.5 |
150-400(1)A | 128 176 224 |
35.6 48.9 62.2 |
46 44 40 |
67 72 71 |
1450 | 37 | 3.5 |
150-400(I)B | 112 160 208 |
31.1 44.4 57.8 |
40.5 38 30 |
73 | 1450 | 30 | 3.5 |
150-250 | 120 200 240 |
33.3 55.6 66.7 |
83 80 72 |
66 78 75 |
2900 | 75 | 3.5 |
150-250A | 112 187 224 |
31.3 51.9 62.2 |
73 70 63 |
64 75 73 |
2900 | 55 | 4.2 |
150-250B | 144 173 208 |
28.9 48.1 37.8 |
63 60 54 |
63 74 72 |
2900 | 45 | 4.5 |
150-315 | 120 200 240 |
33.3 55.6 66.7 |
130 125 120 |
60 75 77 |
2900 | 110 | 4.5 |
150-315A | 112 187 224 |
31.3 51.9 62.2 |
113 110 105 |
57 72 74 |
2900 | 90 | 4.5 |
150-315B | 104 173 208 |
28.9 48.1 57.8 |
98 95 91 |
55 70 72 |
2900 | 75 | 4.5 |
200-200 | 140 200 260 |
38.9 55.6 72.2 |
13.5 12.5 11 |
68 78 78 |
1450 | 15 | 3.0 |
200-200A | 128 176 224 |
35.6 48.9 62.2 |
11 10 8.5 |
76 | 1450 | 11 | 3.0 |
200-250 | 140 200 260 |
38.9 55.6 72.2 |
22 30 15.5 |
70 79 72 |
1450 | 18.5 | 3.5 |
200-250A | 128 176 224 |
35.6 48.9 62.2 |
18.5 17 11.5 |
78 | 1450 | 15 | 3.5 |
200-250B | 112 160 208 |
31.1 44.4 57.8 |
15.4 14 10 |
77 | 1450 | 11 | 3.5 |
200-315 | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 26 |
73 78 77 |
1450 | 30 | 3.5 |
200-315 | 128 176 224 |
35.6 48.9 62.2 |
30 28 22 |
77 | 1450 | 22 | 3.5 |
200-315B | 112 160 208 |
31.1 44.4 57.8 |
26 24 18 |
75 | 1450 | 18.5 | 3.5 |
200-400 | 140 200 260 |
38.9 55.6 72.2 |
52.5 50 42 |
68 75 68 |
1450 | 45 | 3.5 |
200-400A | 128 176 224 |
35.6 48.9 62.2 |
46.5 44 36 |
74 |
1450 | 37 | 3.5 |
200-400B | 112 160 208 |
31.1 44.4 57.8 |
40.5 38 30 |
73 | 1450 | 30 | 3.5 |
200-200(I) | 280 400 520 |
77.8 111.1 144 |
13.4 12.5 10.5 |
70 80 79 |
1450 | 22 | 4.5 |
200-200(I)A | 256 352 448 |
71.1 97.8 121 |
10.8 10 8.5 |
71 78 77 |
1450 | 18.5 | 4.5 |
200-250(I) | 280 400 520 |
77.8 111.1 144 |
22.2 20 14 |
75 80 72 |
1450 | 30 | 4.5 |
200-250(I)A | 256 352 448 |
71.1 97.8 124 |
19 17 13 |
71 76 74 |
1450 | 22 | 4.5 |
200-250(I)B | 224 320 416 |
62.2 88.9 116 |
15.5 14 10 |
78 | 1450 | 18.5 | 4.5 |
200-315(I) | 280 400 520 |
77.8 111.1 144 |
36 32 26 |
75 80 75 |
1450 | 55 | 4.5 |
200-315(I)A | 256 352 448 |
71.1 97.8 124 |
31.5 28 23 |
75 79 70 |
1450 | 45 | 4.5 |
200-315(I)B | 224 320 416 |
62.2 88.9 116 |
27.5 24 18.5 |
78 |
1450 | 37 | 4.0 |
200-400(I) | 280 400 520 |
77.8 111.1 144 |
54.5 50 39 |
75 81 77 |
1450 | 75 | 4.0 |
200-400(I)A | 256 352 448 |
71.1 97.8 124 |
47 44 35 |
80 | 1450 | 55 | 4.0 |
200-400(I)B | 224 320 416 |
62.2 88.9 116 |
42 38 29 |
80 | 1450 | 45 | 4.0 |
250-250 | 350 550 650 |
97.2 152.8 180.5 |
22 20 16 |
78 82 81 |
1450 | 45 | 5.0 |
250-250A | 300 500 600 |
83.3 139 166.7 |
18.3 17 14 |
76 80 80 |
1450 | 37 | 5.0 |
250-315 | 350 550 650 |
97.2 152.8 180.5 |
34 32 28 |
76 80 79 |
1450 | 75 | 5.5 |
250-315A | 300 500 600 |
83.3 139 166.7 |
29.5 28 24 |
74 78 77 |
1450 | 55 | 5.5 |
250-315B | 260 450 520 |
72.2 125 144.4 |
25 24 20 |
70 74 72 |
1450 | 45 | 5.5 |
300-235 | 480 720 900 |
133 200 250 |
20 18 15.5 |
77 81 74 |
970 | 55 | 4.5 |
300-235A | 420 600 780 |
117 167 217 |
16.2 15 13 |
75 81 77 |
970 | 45 | 5.0 |
300-300 | 780 720 900 |
133 200 250 |
31 28 25 |
77 81 77 |
970 | 75 | 5.0 |
300-300A | 420 600 780 |
117 167 217 |
25.5 24 21.5 |
76 80 77 |
970 | 55 | 5.0 |
300-300B | 380 540 700 |
106 150 194 |
22.5 21 18 |
79 | 970 | 45 | 5.0 |
300-380 | 480 720 900 |
133 200 250 |
46 44 40 |
76 80 81 |
970 | 132 | 5.0 |
300-380A | 420 600 780 |
117 167 217 |
42 40 36 |
70 76 78 |
970 | 110 | 5.0 |
300-380B | 380 540 700 |
106 150 194 |
37 35 30 |
72 76 76 |
970 | 90 | 5.0 |

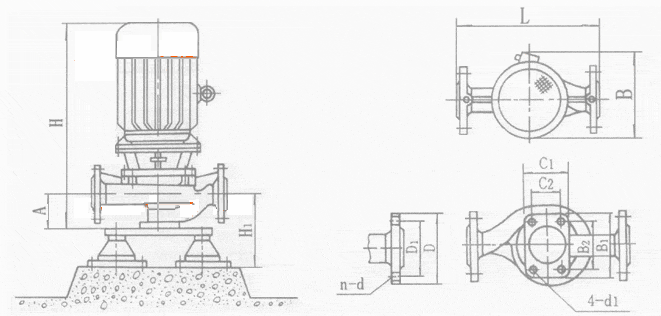

ISG、IRG、GRG、IHG、YG、ISHB型外形安裝尺寸圖:

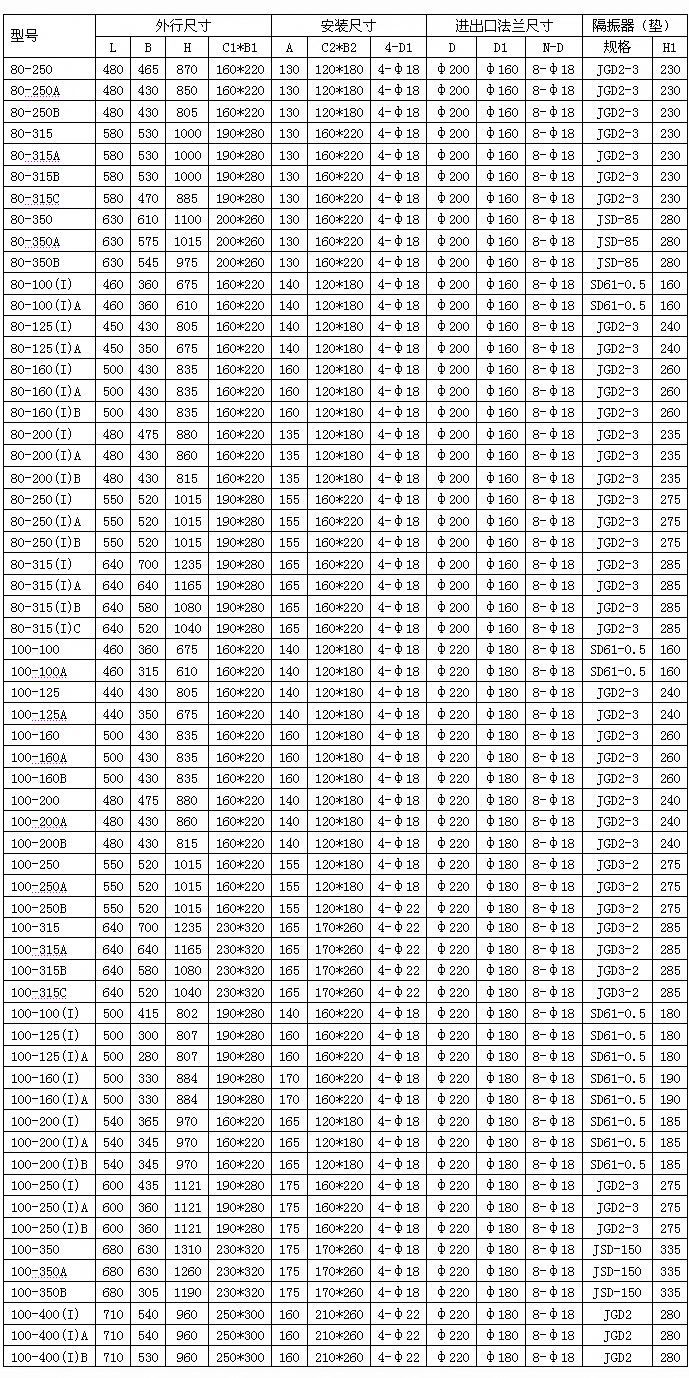

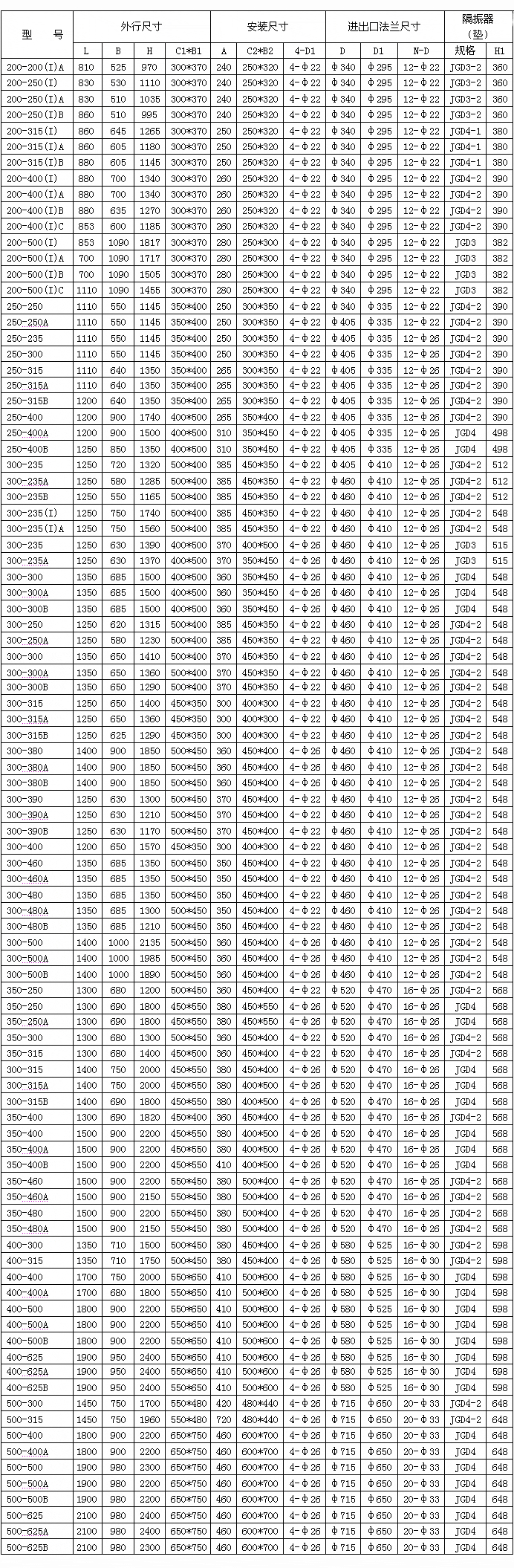

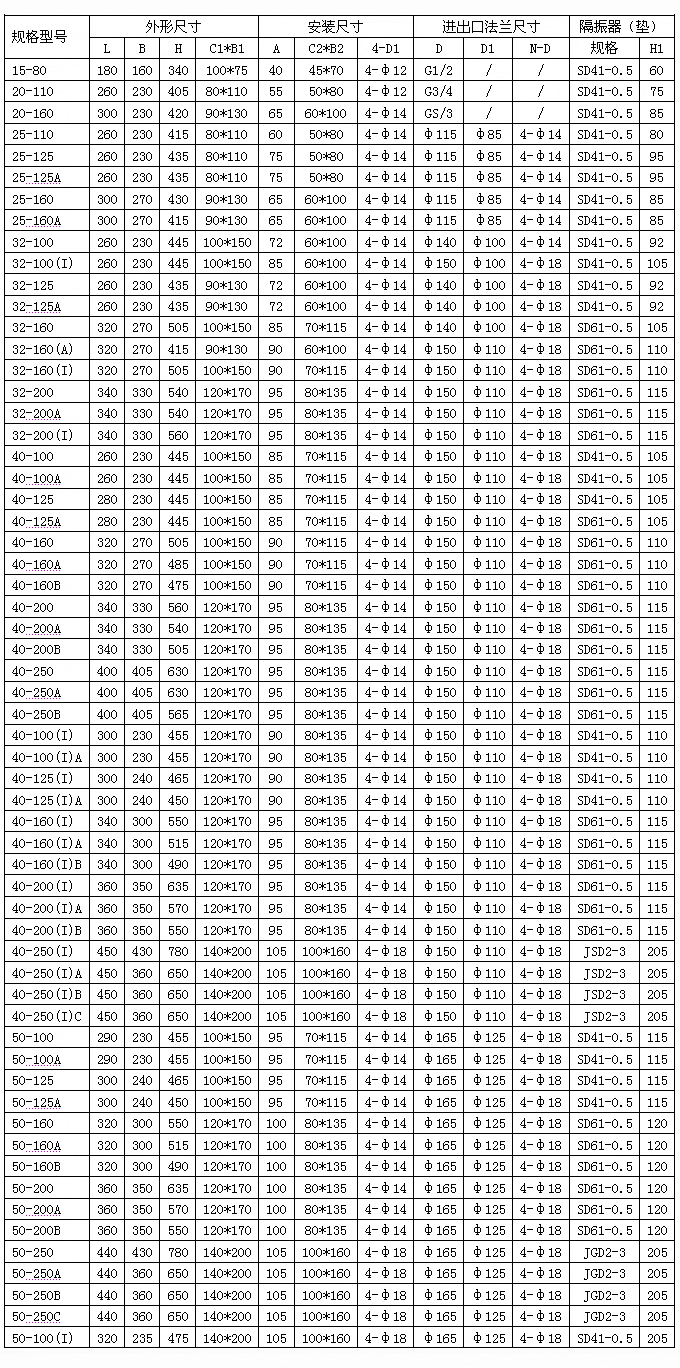

ISG、IRG、GRG、IHG、YG、ISHB型外形安裝尺寸表:
版權所有 ? 上海邁科泵業制造有限公司 銷售電話:021 - 56625995,36339855 E-mail: maike168@126.com 滬ICP備09048599號-1
