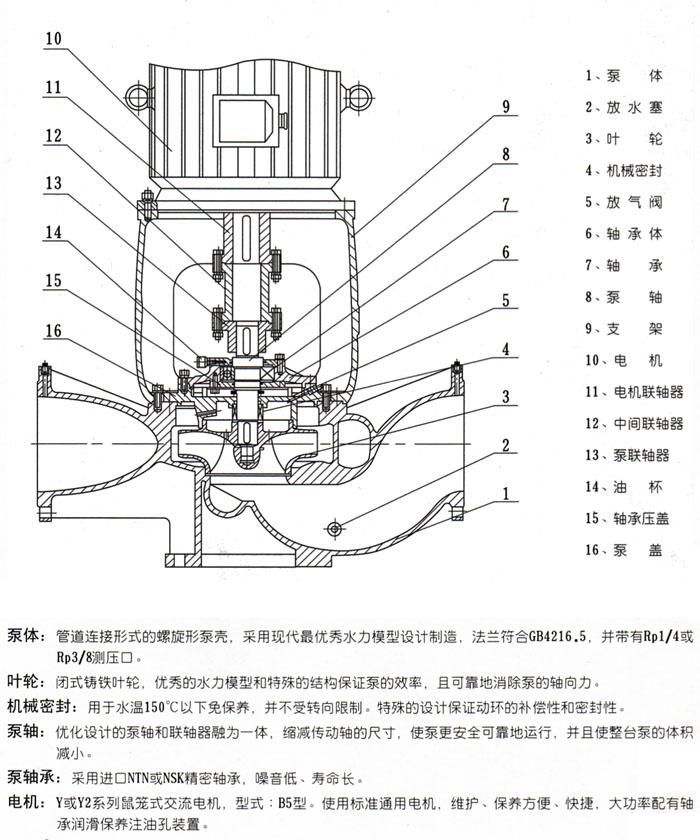

ISGB便拆立式管道泵是在ISG型管道離心泵的基礎上開發成功的一種結構新穎,技術先進的產品。 該立式管道泵特別是在整體結構上進行大膽突破設計。采用獨立軸承體、泵軸支撐,解決了原來立式管道泵靠電機軸承支撐的不足之處;采用優秀水力模型的葉輪,消除了原立式管道泵軸向力大的不足之處;電機采用Y系列標準通用電機,解決原立式管道泵加長軸電機配套更換難的問題;同時100%的便拆結構,解決了更換大功率水泵的軸承、機械密封、葉輪、泵軸的難題。上海管道泵廠的管道離心泵與國內同類產品相比,具有運轉更平穩、使用壽命長、配套更方便、維護保養更輕松等等,無可代替的優點

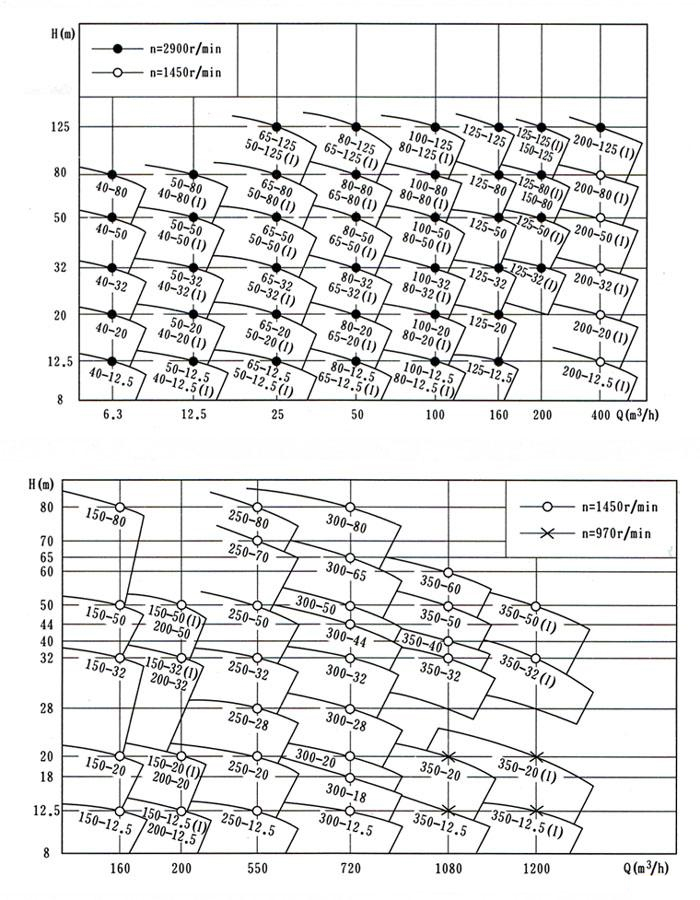

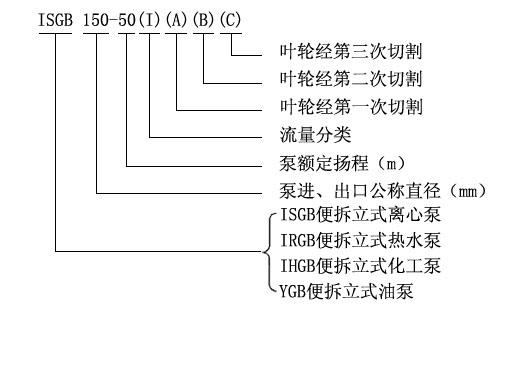

型號 | 流量Q | 揚程Hm | 效率% | 轉速Nr/min | 電機功率PKW | 必需汽蝕余量NPSHrm | 重量Wkg | |
m3/h | l/s | |||||||
ISGB40-12.5 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 | 2.3 | 35 |
ISGB40-12.5A | 3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10 9 |
52 | 2900 | 0.37 | 2.3 | 35 |
ISGB40-20 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 | 1.1 | 2.3 | 35 |
ISGB40-20A | 3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 | 0.75 | 2.3 | 33 |
ISGB40-32 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
23 32 30 |
35 40 40 |
2900 | 2.2 | 2.3 | 50 |
ISGB40-32A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 | 1.5 | 2.3 | 45 |
ISGB40-32B | 3.8 5.5 7.2 |
1.06 1.53 2.00 |
25.5 24 22.5 |
34 38 37 |
2900 | 1.1 | 2.3 | 40 |
ISGB40-50 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 50 48 |
26 33 32 |
2900 | 4.0 | 2.3 | 75 |
ISGB40-50A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
20 31 30 |
2900 | 3.0 | 2.3 | 65 |
ISGB40-50B | 3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
29 | 2900 | 2.2 | 2.3 | 55 |
ISGB40-80 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 | 7.5 | 2.3 | 110 |
ISGB40-80A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 | 5.5 | 2.3 | 105 |
ISGB40-80B | 3.8 5.5 7.2 |
1.06 1.53 2.00 |
61.5 60 56 |
23 27 26 |
2900 | 5.5 | 2.3 | 80 |
ISGB40-12.5(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 35 |
ISGB40-12.5(I)A | 8 11 14.5 |
2.22 3.06 4.03 |
10.6 10 9 |
60 | 2900 | 0.75 | 2.3 | 32 |
ISGB40-20(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 57 |
49 58 57 |
2900 | 1.5 | 2.3 | 40 |
ISGB40-20(I)A | 8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 35 |
ISGB40-32(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3.0 | 2.3 | 60 |
ISGB40-32(I)A | 8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 50 |
ISGB40-32(I)B | 7.3 10.4 13.5 |
2.38 2.89 3.75 |
26 24 20 |
50 | 2900 | 1.5 | 2.3 | 45 |
ISGB40-50(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 90 |
ISGB40-50(I)A | 8.3 11.7 15.3 |
2.31 3.25 4.25 |
45 44 42 |
37 46 45 |
2900 | 4.0 | 2.3 | 80 |
ISGB40-50(I)B | 7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
40 | 2900 | 3.0 | 2.3 | 70 |
ISGB40-80(I) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 | 11.0 | 2.3 | 150 |
ISGB40-80(I)A | 8.2 11.6 15.2 |
2.28 3.22 4.22 |
71 70 68 |
38 | 2900 | 7.5 | 2.3 | 100 |
ISGB40-80(I)B | 7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 7.5 | 2.3 | 95 |
ISGB40-80(I)C | 7.1 10.1 13.1 |
1.97 2.87 3.64 |
53.2 52 50.4 |
36 | 2900 | 5.5 | 2.3 | 90 |
ISGB50-12.5 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 40 |
ISGB50-12.5A | 8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
60 | 2900 | 0.75 | 2.3 | 35 |
ISGB50-20 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 45 |
ISGB50-20A | 8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 40 |
ISGB50-32 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3.0 | 2.3 | 60 |
ISGB50-32A | 8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 50 |
ISGB50-32B | 7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 | 2.3 | 46 |
ISGB50-50 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 105 |
ISGB50-50A | 8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 | 4.0 | 2.3 | 85 |
ISGB50-50B | 7.5 10.6 13.8 |
2.08 2.94 3.83 |
40 38 35 |
44 | 2900 | 3.0 | 2.3 | 70 |
ISGB50-80 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 38 40 |
2900 | 11.0 | 2.3 | 160 |
ISGB50-80A | 8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
29 38 41 |
2900 | 7.5 | 2.3 | 120 |
ISGB50-80B | 7.6 10.8 14 |
2.11 3.0 3.89 |
61.5 60 58 |
27.5 37 40 |
2900 | 7.5 | 2.3 | 115 |
ISGB50-80C | 7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
27 36 39 |
2900 | 5.5 | 2.3 | 110 |
ISGB50-12.5(I) | 17.5 25 32.5 |
4.86 6.97 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 45 |
ISGB50-12.5(I)A | 15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 40 |
ISGB50-20(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3.0 | 2.5 | 60 |
ISGB50-20(I)A | 15.6 22.3 29 |
4.33 6.19 8.1 |
17.5 16 13.6 |
58 66 65 |
2900 | 2.2 | 2.5 | 50 |
ISGB50-32(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
55 63 60 |
2900 | 4.0 | 2.5 | 75 |
ISGB50-32(I)A | 16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 4.0 | 2.5 | 75 |
ISGB50-32(I)B | 15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
61 | 2900 | 3.0 | 2.5 | 65 |
ISGB50-50(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 110 |
ISGB50-50(I)A | 16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 110 |
ISGB50-50(I)B | 15.2 21.8 28.3 |
4.22 6.06 7.86 |
40.5 38 34.5 |
55 | 2900 | 5.5 | 2.5 | 100 |
ISGB50-80(I) | 17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15.0 | 2.5 | 175 |
ISGB50-80(I)A | 16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 51 52 |
2900 | 11.0 | 2.5 | 165 |
ISGB50-80(I)B | 15 21.6 28 |
4.17 6.0 7.78 |
61 60 58 |
38 50 54 |
2900 | 11.0 | 2.5 | 165 |
ISGB50-125(I) | 17.3 25 32.5 |
4.6 6.94 9.03 |
128 125 122 |
31 40 44 |
2900 | 30.0 | 2.5 | 310 |
ISGB50-125(I)A | 16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 | 22.0 | 2.5 | 250 |
ISGB50-125(I)B | 15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 215 |
ISGB50-125(I)C | 14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15.0 | 2.5 | 195 |
ISGB65-12.5 | 17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 45 |
ISGB65-12.5A | 15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 40 |
ISGB65-20 | 17.5 25 32.5 |
4.86 6.94 9.03 |
22 20 18 |
60 68 67 |
2900 | 3.0 | 2.5 | 60 |
ISGB65-20A | 15.6 22.3 29 |
4.33 6.19 8.1 |
17.5 16 14.4 |
58 66 65 |
2900 | 2.2 | 2.5 | 50 |
ISGB65-32 | 17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4.0 | 2.5 | 75 |
ISGB65-32A | 16.4 23.4 30.1 |
4.56 6.5 8.44 |
30 28 24.5 |
54 62 59 |
2900 | 4.0 | 2.5 | 75 |
ISGB65-32B | 15 21.6 28 |
4.17 6.0 7.78 |
26 24 21 |
51 61 60 |
2900 | 3.0 | 2.5 | 65 |
ISGB65-50 | 17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 110 |
ISGB65-50A | 16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 7.5 | 2.5 | 110 |
ISGB65-50B | 15.2 21.8 28.3 |
4.22 6.06 7.86 |
40.5 38 34 |
55 | 2900 | 5.5 | 2.5 | 100 |
ISGB65-80 | 17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15.0 | 2.5 | 185 |
ISGB65-80A | 16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11.0 | 2.5 | 170 |
ISGB65-80B | 15 21.6 28 |
4.17 6.0 7.78 |
61 60 58 |
38 49 54 |
2900 | 11.0 | 2.5 | 170 |
ISGB65-125 | 17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 | 30.0 | 2.5 | 320 |
ISGB65-125A | 16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 | 22.0 | 2.5 | 260 |
ISGB65-125B | 15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 225 |
ISGB65-125C | 14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15.0 | 2.5 | 210 |
ISGB65-12.5(I) | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3.0 | 3.0 | 65 |
ISGB65-12.5(I)A | 31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 55 |
ISGB65-20(I) | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 100 |
ISGB65-20(I)A | 31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
60 71 69 |
2900 | 4.0 | 3.0 | 80 |
ISGB65-32(I) | 35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 105 |
ISGB65-32(I)A | 32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 25 |
62 70 69 |
2900 | 7.5 | 3.0 | 105 |
ISGB65-32(I)B | 30.0 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 | 2900 | 5.5 | 3.0 | 95 |
ISGB65-50(I) | 35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15.0 | 3.0 | 180 |
ISGB65-50(I)A | 32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11.0 | 3.0 | 165 |
ISGB65-50(I)B | 30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 | 3.0 | 115 |
ISGB65-80(I) | 35 50 65 |
9.7 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22.0 | 3.0 | 235 |
ISGB65-80(I)A | 32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 | 3.0 | 205 |
ISGB65-80(I)B | 30 43.3 56 |
8.3 12.0 15.6 |
63 60 54 |
58 | 2900 | 15.0 | 3.0 | 180 |
ISGB65-125(I) | 35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2900 | 37.0 | 3.0 | 350 |
ISGB65-125(I)A | 32.5 46.5 60.5 |
9.0 12.9 16.8 |
116 113 110 |
43 54 57 |
2900 | 30.0 | 3.0 | 335 |
ISGB65-125(I)B | 31 44.5 58 |
8.6 12.4 16.1 |
103 101 97 |
40 53 56 |
2900 | 30.0 | 3.0 | 335 |
ISGB65-125(I)C | 29 41 53.6 |
8.1 11.4 14.9 |
87 85 83 |
39 51 55 |
2900 | 22.0 | 3.0 | 270 |
ISGB80-12.5 | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3.0 | 3.0 | 65 |
ISGB80-12.5A | 31.3 44.7 58 |
8.7 12.5 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 60 |
ISGB80-20 | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 100 |
ISGB80-20A | 31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4.0 | 3.0 | 80 |
ISGB80-32 | 35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 105 |
ISGB80-32A | 32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 25 |
62 70 69 |
2900 | 7.5 | 3.0 | 105 |
ISGB80-32B | 30.3 43.3 56.3 |
8.4 12.0 15.6 |
27 24 20 |
69 | 2900 | 5.5 | 3.0 | 100 |
ISGB80-50 | 35 50 65 |
9.72 13.9 18.1 |
53.3 50 46 |
55 67 68 |
2900 | 15.0 | 3.0 | 175 |
ISGB80-50A | 328 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11.0 | 3.0 | 170 |
ISGB80-50B | 30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
53 65 67 |
2900 | 7.5 | 3.0 | 120 |
ISGB80-80 | 35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22.0 | 3.0 | 240 |
ISGB80-80A | 32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 64 |
52 59 60 |
2900 | 18.5 | 3.0 | 210 |
ISGB80-80B | 30 43.3 56 |
8.3 12.0 15.6 |
63 60 54 |
58 | 2900 | 15.0 | 3.0 | 190 |
ISGB80-125 | 35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 | 37.0 | 3.0 | 360 |
ISGB80-125A | 32.5 46.5 60.5 |
9 12.9 16.8 |
116 113 110 |
42 53 56 |
2900 | 30.0 | 3.0 | 345 |

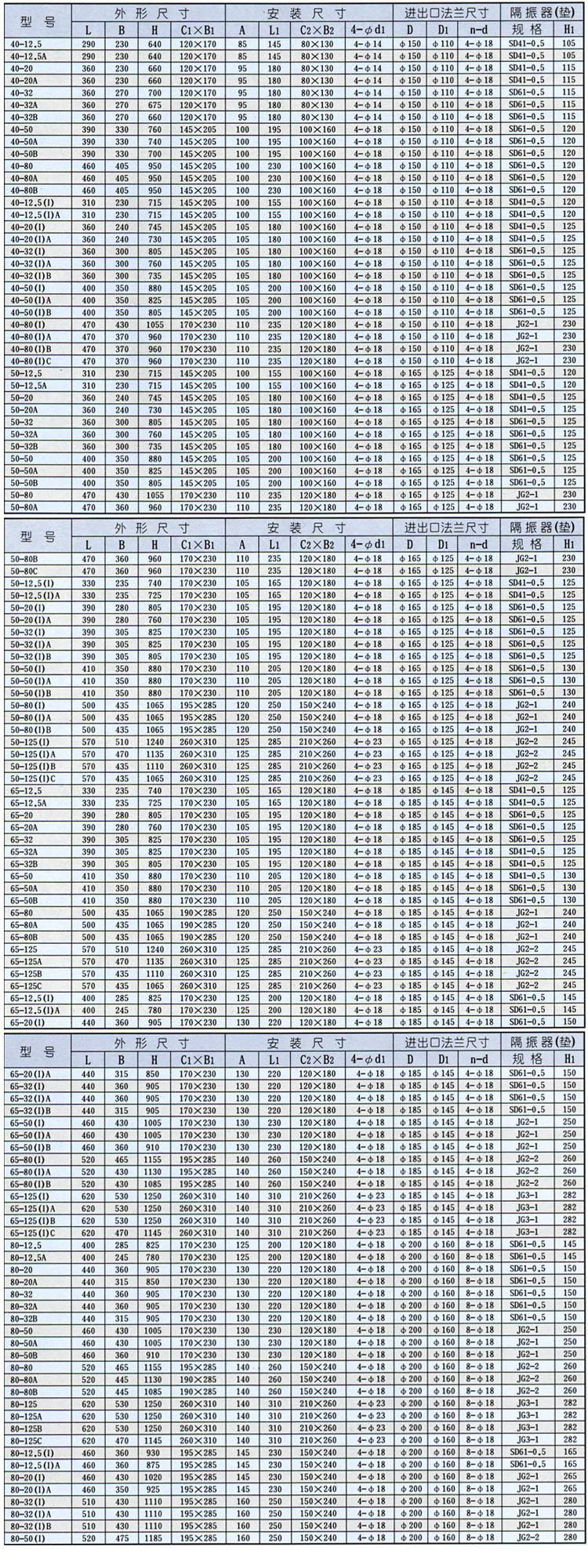

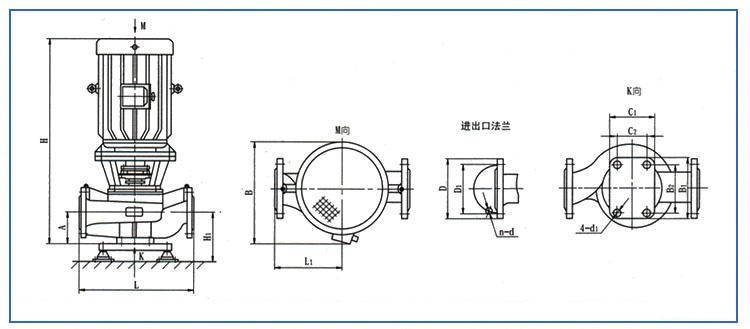

版權所有 ? 上海邁科泵業制造有限公司 銷售電話:021 - 56625995,36339855 E-mail: maike168@126.com 滬ICP備09048599號-1
