QJ型不銹鋼深井泵,結構簡單、維護方便、占地面積小、節省原材料、安全可靠、安裝方便、使用簡單、國際標準、
不銹鋼系列深井泵是引進國外泵業公司領先的制泵技術生產的高性能耐磨型電泵,動力部份配用目前國際先進技術生產的水浸式不銹鋼潛水電機,對水質絕對無污染,是當前國內外深井泵之精品。選用優質不銹鋼外殼、軸芯、聯軸器、入水座和泵頭(或銅合金入水座、泵頭),高強度抗耐磨新型復合高分子材料葉輪和不銹鋼導流殼,全新“浮動式”結構葉輪在工作期間對電機無軸向壓力。特別適用于工礦業、農業、建筑業、養殖業、食品飲料業及家庭式(或高層送水使用)。
型號 | 揚程 | 流量(m3/h) | 電機功率(KW) | 轉速(r/min) |
100QJ1-6 | 30 | 1 | 0.37 | 2850 |
100QJ 1-9 | 46 | 1 | 0.37 | 2850 |
100QJ 1-13 | 67 | 1 | 0.55 | 2850 |
100QJ 1-17 | 87 | 1 | 0.75 | 2850 |
100QJ 1-21 | 108 | 1 | 1.1 | 2850 |
100QJ 1-25 | 129 | 1 | 1.1 | 2850 |
100QJ 1-28 | 145 | 1 | 1.5 | 2850 |
100QJ 1-32 | 165 | 1 | 1.5 | 2850 |
100QJ 1-36 | 186 | 1 | 1.5 | 2850 |
100QJ 1-39 | 202 | 1 | 2.2 | 2850 |
100QJ 1-42 | 217 | 1 | 2.2 | 2850 |
100QJ 1-46 | 238 | 1 | 2.2 | 2850 |
100QJ 1-50 | 260 | 1 | 2.2 | 2850 |
100QJ 3-6 | 24 | 3 | 0.37 | 2850 |
100QJ 3-9 | 36 | 3 | 0.55 | 2850 |
100QJ 3-12 | 49 | 3 | 0.75 | 2850 |
100QJ 3-15 | 61 | 3 | 1.1 | 2850 |
100QJ 3-18 | 74 | 3 | 1.1 | 2850 |
100QJ 3-22 | 91 | 3 | 1.5 | 2850 |
100QJ 3-27 | 111 | 3 | 2.2 | 2850 |
100QJ 3-32 | 131 | 3 | 2.2 | 2850 |
100QJ 3-38 | 157 | 3 | 3 | 2850 |
100QJ 3-43 | 178 | 3 | 3 | 2850 |
100QJ 5-4 | 15 | 5 | 0.37 | 2850 |
100QJ 5-6 | 22 | 5 | 0.55 | 2850 |
100QJ 5-8 | 30 | 5 | 0.75 | 2850 |
100QJ 5-12 | 45 | 5 | 1.1 | 2850 |
100QJ 5-17 | 64 | 5 | 1.5 | 2850 |
100QJ 5-21 | 79 | 5 | 2.2 | 2850 |
100QJ 5-25 | 94 | 5 | 2.2 | 2850 |
100QJ 5-29 | 108 | 5 | 3.0 | 2850 |
100QJ 5-33 | 123 | 5 | 3.0 | 2850 |
100QJ 5-38 | 142 | 5 | 4.0 | 2850 |
100QJ 5-43 | 161 | 5 | 4.0 | 2850 |
100QJ 8-5 | 19 | 8 | 0.75 | 2850 |
100QJ 8-7 | 27 | 8 | 1.1 | 2850 |
100QJ 8-10 | 39 | 8 | 1.5 | 2850 |
100QJ 8-12 | 47 | 8 | 2.2 | 2850 |
100QJ 8-15 | 59 | 8 | 2.2 | 2850 |
100QJ 8-18 | 71 | 8 | 3.0 | 2850 |
100QJ 8-21 | 83 | 8 | 4.0 | 2850 |
100QJ 8-25 | 99 | 8 | 4.0 | 2850 |
100QJ 8-30 | 119 | 8 | 5.5 | 2850 |
100QJ 8-37 | 147 | 8 | 5.5 | 2850 |
100QJ 8-44 | 174 | 8 | 7.5 | 2850 |
100QJ 8-50 | 198 | 8 | 7.5 | 2850 |
100QJ 12-5 | 25 | 12 | 1.5 | 2850 |
100QJ 12-7 | 35 | 12 | 2.2 | 2850 |
100QJ 12-10 | 50 | 12 | 3.0 | 2850 |
100QJ 12-13 | 66 | 12 | 4.0 | 2850 |
100QJ 12-15 | 76 | 12 | 5.5 | 2850 |
100QJ 12-18 | 91 | 12 | 5.5 | 2850 |
100QJ 12-21 | 106 | 12 | 7.5 | 2850 |
100QJ 12-25 | 126 | 12 | 7.5 | 2850 |
133QJ17-1 | 6.5 | 17 | 0.55 | 2850 |
133QJ 17-2 | 13.5 | 17 | 1.1 | 2850 |
133QJ 17-3 | 20.5 | 17 | 2.2 | 2850 |
133QJ 17-4 | 28 | 17 | 2.2 | 2850 |
133QJ 17-5 | 35 | 17 | 3.0 | 2850 |
133QJ 17-6 | 42 | 17 | 4.0 | 2850 |
133QJ 17-7 | 49 | 17 | 4.0 | 2850 |
133QJ 17-8 | 57 | 17 | 5.5 | 2850 |
133QJ 17-9 | 64 | 17 | 5.5 | 2850 |
133QJ 17-10 | 72 | 17 | 5.5 | 2850 |
133QJ 17-11 | 79 | 17 | 7.5 | 2850 |
133QJ 17-13 | 87 | 17 | 7.5 | 2850 |
133QJ 17-12 | 95 | 17 | 7.5 | 2850 |
133QJ 17-14 | 102 | 17 | 9.2 | 2850 |
133QJ 17-15 | 109 | 17 | 9.2 | 2850 |
133QJ 17-16 | 116 | 17 | 9.2 | 2850 |
133QJ 17-17 | 123 | 17 | 9.2 | 2850 |
133QJ 17-18 | 130 | 17 | 11 | 2850 |
133QJ 17-19 | 138 | 17 | 11 | 2850 |
133QJ 17-20 | 145 | 17 | 11 | 2850 |
133QJ 17-21 | 152 | 17 | 13 | 2850 |
133QJ 17-22 | 160 | 17 | 13 | 2850 |
133QJ 17-23 | 167 | 17 | 13 | 2850 |
133QJ 17-24 | 174 | 17 | 13 | 2850 |
133QJ 17-25 | 181 | 17 | 15 | 2850 |
133QJ 17-26 | 189 | 17 | 15 | 2850 |
133QJ 30-1 | 7.5 | 30 | 1.1 | 2850 |
133QJ 30-2 | 15 | 30 | 2.2 | 2850 |
133QJ 30-3 | 22 | 30 | 3.0 | 2850 |
133QJ 30-4 | 29 | 30 | 4.0 | 2850 |
133QJ 30-5 | 37 | 30 | 5.5 | 2850 |
133QJ 30-6 | 44 | 30 | 5.5 | 2850 |
133QJ 30-7 | 52 | 30 | 7.5 | 2850 |
133QJ 30-8 | 59 | 30 | 7.5 | 2850 |
133QJ 30-9 | 66 | 30 | 9.2 | 2850 |
133QJ 30-10 | 74 | 30 | 9.2 | 2850 |
133QJ 30-11 | 81 | 30 | 9.2 | 2850 |
133QJ 30-12 | 88 | 30 | 11 | 2850 |
133QJ 30-13 | 96 | 30 | 11 | 2850 |
133QJ 30-14 | 103 | 30 | 13 | 2850 |
133QJ 30-15 | 110 | 30 | 13 | 2850 |
133QJ 30-16 | 118 | 30 | 15 | 2850 |
133QJ 30-17 | 125 | 30 | 15 | 2850 |
133QJ 30-18 | 132 | 30 | 18.5 | 2850 |
133QJ 30-19 | 140 | 30 | 18.5 | 2850 |
133QJ 30-20 | 147 | 30 | 18.5 | 2850 |
133QJ 30-21 | 155 | 30 | 18.5 | 2850 |
133QJ 30-22 | 162 | 30 | 22 | 2850 |
133QJ 30-23 | 169 | 30 | 22 | 2850 |
133QJ 30-24 | 177 | 30 | 22 | 2850 |
133QJ 30-25 | 184 | 30 | 22 | 2850 |
150QJ 42-1 | 8.5 | 42 | 2.2 | 2850 |
150QJ 42-2 | 17 | 42 | 3.0 | 2850 |
150QJ 42-3 | 26.5 | 42 | 5.5 | 2850 |
150QJ 42-4 | 36 | 42 | 7.5 | 2850 |
150QJ 42-5 | 45 | 42 | 7.5 | 2850 |
150QJ 42-6 | 54 | 42 | 9.2 | 2850 |
150QJ 42-7 | 63 | 42 | 11 | 2850 |
150QJ 42-8 | 72 | 42 | 13 | 2850 |
150QJ 42-9 | 80 | 42 | 15 | 2850 |
150QJ 42-10 | 89 | 42 | 15 | 2850 |
150QJ 42-11 | 98 | 42 | 18.5 | 2850 |
150QJ 42-12 | 107 | 42 | 18.5 | 2850 |
150QJ 42-13 | 116 | 42 | 22 | 2850 |
150QJ 42-14 | 125 | 42 | 22 | 2850 |
150QJ 42-15 | 134 | 42 | 22 | 2850 |
150QJ 42-16 | 143 | 42 | 25 | 2850 |
150QJ 42-17 | 152 | 42 | 25 | 2850 |
150QJ 42-18 | 161 | 42 | 30 | 2850 |
150QJ 42-19 | 170 | 42 | 30 | 2850 |
150QJ 42-20 | 179 | 42 | 30 | 2850 |
150QJ 42-21 | 188 | 42 | 37 | 2850 |
150QJ 42-22 | 197 | 42 | 37 | 2850 |
150QJ 60-1 | 6 | 60 | 2.2 | 2850 |
150QJ 60-2-2 | 10.5 | 60 | 3.0 | 2850 |
150QJ 60-2 | 12.5 | 60 | 4.0 | 2850 |
150QJ 60-3 | 20 | 60 | 5.5 | 2850 |
150QJ 60-4 | 29 | 60 | 7.5 | 2850 |
150QJ 60-5 | 37 | 60 | 9.2 | 2850 |
150QJ 60-6 | 45 | 60 | 11 | 2850 |
150QJ 60-7 | 53 | 60 | 13 | 2850 |
150QJ 60-8-2 | 56 | 60 | 13 | 2850 |
150QJ 60-8 | 61 | 60 | 15 | 2850 |
150QJ 60-9-2 | 64 | 60 | 15 | 2850 |
150QJ 60-9 | 69 | 60 | 18.5 | 2850 |
150QJ 60-10 | 77 | 60 | 18.5 | 2850 |
150QJ 60-11 | 85 | 60 | 22 | 2850 |
150QJ 60-12 | 93 | 60 | 22 | 2850 |
150QJ 60-13 | 100 | 60 | 22 | 2850 |
150QJ 60-14 | 106 | 60 | 25 | 2850 |
150QJ 60-15 | 114 | 60 | 25 | 2850 |
150QJ 60-16 | 122 | 60 | 30 | 2850 |
150QJ 60-17 | 130 | 60 | 30 | 2850 |
150QJ 60-18 | 140 | 60 | 30 | 2850 |
150QJ 60-19 | 148 | 60 | 37 | 2850 |
150QJ 60-20 | 155 | 60 | 37 | 2850 |
150QJ 60-21 | 163 | 60 | 37 | 2850 |
潛水深井泵由潛水電動機、泵工作部分和揚水管部分組成。泵部分與電機直聯一體潛入水中工作。當電動機旋轉時,通過聯軸器帶動泵一起轉動,液體在葉輪作用下,速度能和壓力能同時增加,通過中殼、揚水管流出
不銹鋼系列深井泵是引進國外泵業公司領先的制泵技術生產的高性能耐磨型電泵,動力部份配用目前國際先進技術生產的水浸式不銹鋼潛水電機,對水質絕對無污染,是當前國內外深井泵之精品。選用優質不銹鋼外殼、軸芯、聯軸器、入水座和泵頭(或銅合金入水座、泵頭),高強度抗耐磨新型復合高分子材料葉輪和不銹鋼導流殼,全新“浮動式”結構葉輪在工作期間對電機無軸向壓力。特別適用于工礦業、農業、建筑業、養殖業、食品飲料業及家庭式(或高層送水使用)。
泵型號 | 尺寸 | 重量 (kg) | |||
A | B | C | |||
QJ1-6 | 667 | 370 | 297 | 12 | |
QJ1-9 | 730 | 370 | 360 | 13 | |
QJ1-13 | 824 | 380 | 444 | 15 | |
QJ1-17 | 928 | 400 | 528 | 17 | |
QJ1-21 | 1052 | 440 | 612 | 19 | |
QJ1-25 | 1136 | 440 | 696 | 20 | |
QJ1-28 | 1229 | 470 | 759 | 23 | |
QJ1-32 | 1313 | 470 | 843 | 24 | |
QJ1-36 | 1397 | 470 | 927 | 25 | |
QJ1-39 | 1500 | 510 | 990 | 29 | |
QJ1-42 | 1563 | 510 | 1053 | 30 | |
QJ1-46 | 1647 | 510 | 1137 | 31 | |
QJ1-50 | 1731 | 510 | 1221 | 32 |
泵型號 | 尺寸 | 重量 (kg) | |||
A | B | C | |||
QJ3-6 | 667 | 370 | 297 | 12 | |
QJ3-9 | 740 | 380 | 360 | 13 | |
QJ3-12 | 823 | 400 | 423 | 16 | |
QJ3-15 | 926 | 440 | 486 | 18 | |
QJ3-18 | 999 | 440 | 549 | 19 | |
QJ3-22 | 1103 | 470 | 633 | 22 | |
QJ3-27 | 1248 | 510 | 738 | 27 | |
QJ3-32 | 1353 | 510 | 843 | 28 | |
QJ3-38 | 1589 | 620 | 969 | 31 | |
QJ3-43 | 1694 | 620 | 1074 | 32 |
泵型號 | 尺寸 | 重量 (kg) | |||
A | B | C | |||
QJ5-4 | 625 | 370 | 255 | 12 | |
QJ5-6 | 677 | 380 | 297 | 13 | |
QJ5-8 | 739 | 400 | 339 | 15 | |
QJ5-12 | 863 | 440 | 423 | 17 | |
QJ5-17 | 998 | 470 | 528 | 21 | |
QJ5-21 | 1122 | 510 | 612 | 26 | |
QJ5-25 | 1206 | 510 | 696 | 27 | |
QJ5-29 | 1400 | 620 | 780 | 29 | |
QJ5-33 | 1484 | 620 | 864 | 30 | |
QJ5-38 | 1719 | 750 | 969 | 33 | |
QJ5-43 | 1824 | 750 | 1074 | 35 |
泵型號 | 尺寸 | 重量 (kg) | |||
A | B | C | |||
QJ8-5 | 853 | 400 | 453 | 16 | |
QJ8-7 | 977 | 440 | 537 | 19 | |
QJ8-10 | 1133 | 470 | 663 | 22 | |
QJ8-12 | 1257 | 510 | 747 | 27 | |
QJ8-15 | 1619 | 510 | 873 | 29 | |
QJ8-18 | 1383 | 620 | 999 | 32 | |
QJ8-21 | 1875 | 750 | 1125 | 35 | |
QJ8-25 | 2043 | 750 | 1293 | 37 | |
QJ8-30 | 2343 | 840 | 1503 | 43 | |
QJ8-37 | 2637 | 840 | 1797 | 46 | |
QJ8-44 | 3011 | 920 | 2091 | 55 | |
QJ8-50 | 3263 | 920 | 2343 | 58 |
泵型號 | 尺寸 | 重量 (kg) | |||
A | B | C | |||
QJ12-5 | 1005 | 470 | 535 | 21 | |
QJ12-7 | 1175 | 510 | 665 | 26 | |
QJ12-10 | 1480 | 620 | 860 | 30 | |
QJ12-13 | 1805 | 750 | 1055 | 34 | |
QJ12-15 | 2025 | 840 | 1185 | 38 | |
QJ12-18 | 2220 | 840 | 1380 | 40 | |
QJ12-21 | 2495 | 920 | 1575 | 47 | |
QJ12-25 | 2755 | 920 | 1835 | 50 |
泵型號 | 尺寸 | 重量 (kg) | ||||
A | B | C | D | |||
QJ17-1 | 708 | 380 | 328 | 96 | 17 | |
QJ17-2 | 828 | 440 | 388 | 96 | 21 | |
QJ17-3 | 959 | 510 | 449 | 96 | 28 | |
QJ17-4 | 1019 | 510 | 509 | 96 | 29 | |
QJ17-5 | 1190 | 620 | 570 | 96 | 32 | |
QJ17-6 | 1380 | 750 | 630 | 96/143 | 35/41 | |
QJ17-7 | 1441 | 750 | 691 | 96/143 | 36/42 | |
QJ17-8 | 1591 | 840 | 751 | 96/143 | 41/49 | |
QJ17-9 | 1652 | 840 | 812 | 96/143 | 42/50 | |
QJ17-10 | 1712 | 840 | 872 | 96/143 | 43/51 | |
QJ17-11 | 1853 | 920 | 933 | 96/143 | 49/60 | |
QJ17-12 | 1913 | 920 | 993 | 96/143 | 50/61 | |
QJ17-13 | 1974 | 920 | 1054 | 96/143 | 51/62 | |
QJ17-14 | 2000 | 870 | 1130 | 143 | 75 | |
QJ17-15 | 2061 | 870 | 1191 | 143 | 76 | |
QJ17-16 | 2121 | 870 | 1251 | 143 | 77 | |
QJ17-17 | 2182 | 870 | 1312 | 143 | 78 | |
QJ17-18 | 2292 | 920 | 1372 | 143 | 85 | |
QJ17-19 | 2353 | 920 | 1433 | 143 | 86 | |
QJ17-20 | 2413 | 920 | 1499 | 143 | 87 | |
QJ17-21 | 2534 | 980 | 1554 | 143 | 95 | |
QJ17-22 | 2594 | 980 | 1614 | 143 | 96 | |
QJ17-23 | 2655 | 980 | 1675 | 143 | 98 | |
QJ17-24 | 2715 | 980 | 1753 | 143 | 99 | |
QJ17-25 | 2826 | 1030 | 1796 | 143 | 106 | |
QJ17-26 | 2880 | 1030 | 1856 | 143 | 107 |
泵型號 | 尺寸 | 重量 (kg) | ||||
A | B | C | D | |||
QJ30-1 | 802 | 440 | 362 | 96 | 20 | |
QJ30-2 | 968 | 510 | 458 | 96 | 28 | |
QJ30-3 | 1174 | 620 | 554 | 96 | 31 | |
QJ30-4 | 1400 | 750 | 650 | 96/143 | 35/41 | |
QJ30-5 | 1586 | 840 | 746 | 96/143 | 40/48 | |
QJ30-6 | 1682 | 840 | 842 | 96/143 | 42/50 | |
QJ30-7 | 1858 | 920 | 938 | 96/143 | 49/60 | |
QJ30-8 | 1954 | 920 | 1034 | 96/143 | 51/61 | |
QJ30-9 | 2016 | 870 | 1146 | 143 | 75 | |
QJ30-10 | 2112 | 870 | 1242 | 143 | 77 | |
QJ30-11 | 2208 | 870 | 1338 | 143 | 79 | |
QJ30-12 | 2354 | 920 | 1434 | 143 | 85 | |
QJ30-13 | 2450 | 920 | 1530 | 143 | 87 | |
QJ30-14 | 2606 | 980 | 1626 | 143 | 96 | |
QJ30-15 | 2702 | 980 | 1722 | 143 | 98 | |
QJ30-16 | 2848 | 1030 | 1818 | 143 | 106 | |
QJ30-17 | 2944 | 1030 | 1914 | 143 | 108 | |
QJ30-18 | 2100 | 1090 | 2010 | 143 | 117 | |
QJ30-19 | 3196 | 1090 | 2106 | 143 | 119 | |
QJ30-20 | 3292 | 1090 | 2202 | 143 | 120 | |
QJ30-21 | 3388 | 1090 | 2298 | 143 | 122 | |
QJ30-22 | 3554 | 1160 | 2349 | 143 | 138 | |
QJ30-23 | 3650 | 1160 | 2490 | 143 | 140 | |
QJ30-24 | 3746 | 1160 | 2586 | 143 | 142 | |
QJ30-25 | 3842 | 1160 | 2682 | 143 | 144 |
泵型號 | 尺寸 | 重量 (kg) | ||||
A | B | C | D | |||
QJ42-1 | 888 | 510 | 378 | 96 | 29 | |
QJ42-2 | 1111 | 620 | 491 | 96 | 33 | |
QJ42-3 | 1444 | 840 | 604 | 96/143 | 40/48 | |
QJ42-4 | 1637 | 920 | 717 | 96/143 | 47/58 | |
QJ42-5 | 1750 | 920 | 830 | 96/143 | 49/60 | |
QJ42-6 | 1892 | 870 | 959 | 96/143 | 73 | |
QJ42-7 | 1992 | 920 | 1072 | 96/143 | 80 | |
QJ42-8 | 2165 | 980 | 1185 | 143 | 89 | |
QJ42-9 | 2328 | 1030 | 1298 | 143 | 97 | |
QJ42-10 | 2441 | 1030 | 1411 | 143 | 100 | |
QJ42-11 | 2614 | 1090 | 1524 | 143 | 109 | |
QJ42-12 | 2727 | 1090 | 1637 | 143 | 111 | |
QJ42-13 | 2910 | 1160 | 1750 | 143 | 127 | |
QJ42-14 | 3023 | 1160 | 1863 | 143 | 129 | |
QJ42-15 | 3136 | 1160 | 1976 | 143 | 131 | |
QJ42-16 | 3319 | 1230 | 2089 | 143 | 145 | |
QJ42-17 | 3432 | 1230 | 2202 | 143 | 147 | |
QJ42-18 | 3645 | 1330 | 2315 | 143 | 162 | |
QJ42-19 | 3758 | 1330 | 2428 | 143 | 164 | |
QJ42-20 | 3871 | 1330 | 2541 | 143 | 167 | |
QJ42-21 | 4220 | 1570 | 2654 | 143 | 192 | |
QJ42-22 | 4337 | 1570 | 2767 | 143 | 194 |

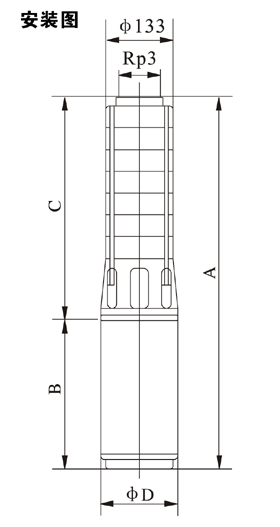

泵型號 | 尺寸 | 重量 (kg) | ||||
A | B | C | D | |||
QJ60-1 | 878 | 510 | 368 | 96 | 30 | |
QJ60-2-2 | 1101 | 620 | 481 | 96 | 33 | |
QJ60-2 | 1231 | 750 | 481 | 96/143 | 35/41 | |
QJ60-3 | 1434 | 840 | 594 | 96/143 | 41/49 | |
QJ60-4 | 1627 | 920 | 707 | 96/143 | 48/59 | |
QJ60-5 | 1690 | 870 | 820 | 96/143 | 72 | |
QJ60-6 | 1869 | 920 | 949 | 96/143 | 78 | |
QJ60-7 | 2042 | 980 | 1062 | 143 | 87 | |
QJ60-8-2 | 2155 | 980 | 1175 | 143 | 88 | |
QJ60-8 | 2205 | 1030 | 1175 | 143 | 96 | |
QJ60-9-2 | 2318 | 1030 | 1288 | 143 | 97 | |
QJ60-9 | 2378 | 1090 | 1288 | 143 | 105 | |
QJ60-10 | 2491 | 1090 | 1401 | 143 | 107 | |
QJ60-11 | 2674 | 1160 | 1514 | 143 | 123 | |
QJ60-12 | 2787 | 1160 | 1627 | 143 | 125 | |
QJ60-13 | 2900 | 1160 | 1740 | 143 | 127 | |
QJ60-14 | 3083 | 1230 | 1853 | 143 | 141 | |
QJ60-15 | 3196 | 1230 | 1966 | 143 | 143 | |
QJ60-16 | 3409 | 1330 | 2079 | 143 | 158 | |
QJ60-17 | 3522 | 1330 | 2192 | 143 | 160 | |
QJ60-18 | 3635 | 1330 | 2305 | 143 | 162 | |
QJ60-19 | 3988 | 1570 | 2418 | 143 | 188 | |
QJ60-20 | 4101 | 1570 | 2531 | 143 | 190 | |
QJ60-21 | 4214 | 1570 | 2644 | 143 | 191 |

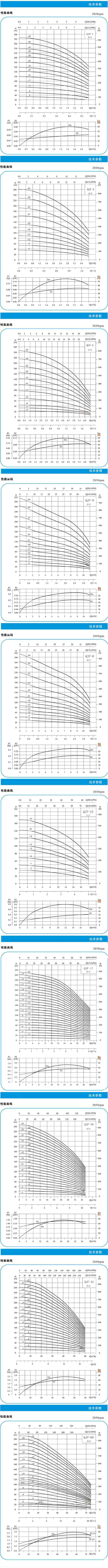

Q/H:曲線表示額定轉速時的流量和揚程曲線。
功率曲線:P2表示每級輸入功率,其曲線有完整型葉輪(1/1)和帶小葉輪型(2/3).
效率曲線:Eta表示泵的級效率
曲線公差符合ISO9906,附錄A
所有曲線都基于3×380V,50Hz,2850r/min測量值。
所有測量都是用溫度20℃不含氣體的水進行的,曲線適用于運動粘度1mm2/s,在泵輸送的液體密度比水密度大時,必須相應的用較高輸出功率的電機。
曲線粗線部分表示推薦的性能范圍。
性能曲線包括諸如止回閥等可能產生的損失。
版權所有 ? 上海邁科泵業制造有限公司 銷售電話:021 - 56625995,36339855 E-mail: maike168@126.com 滬ICP備09048599號-1
